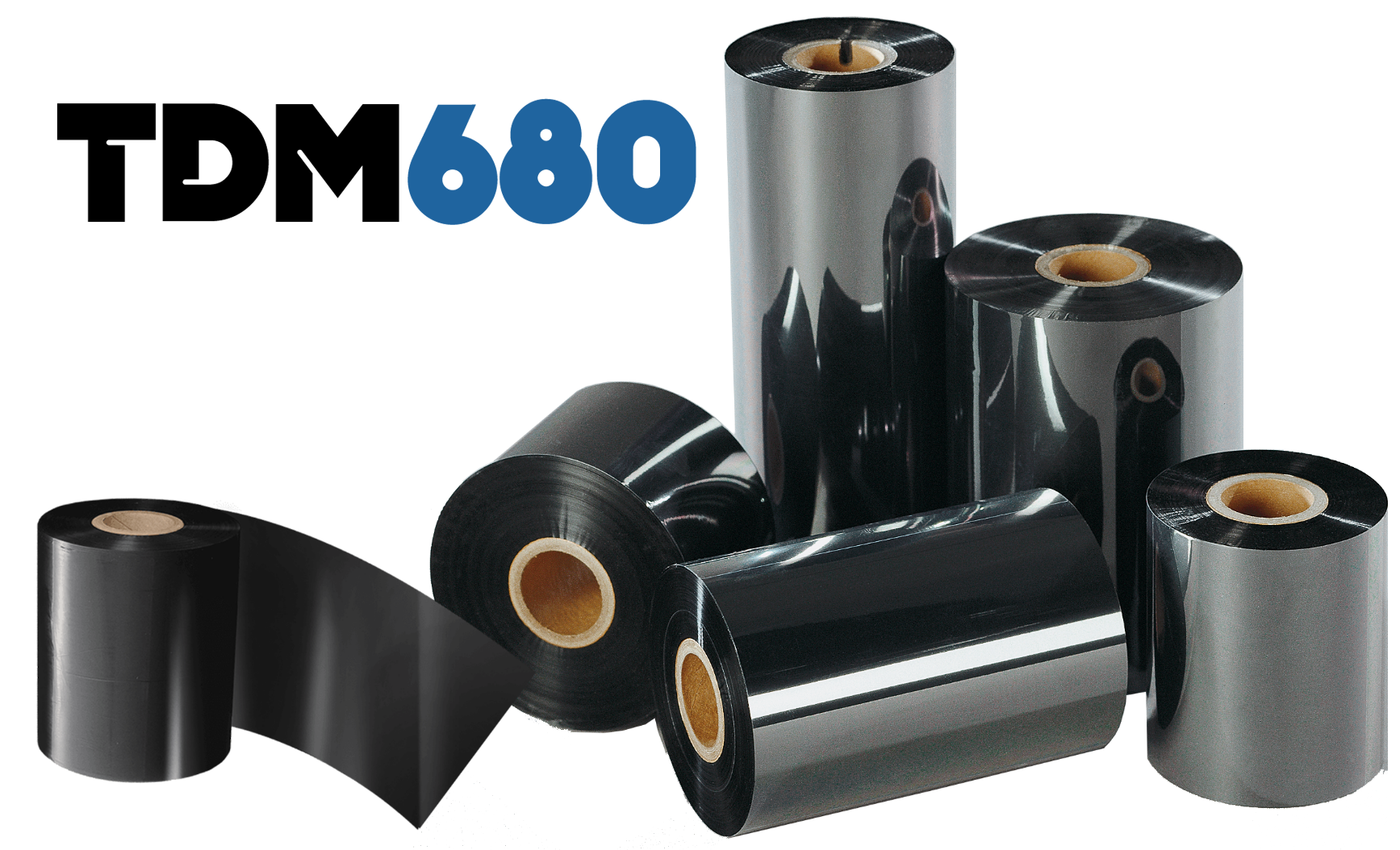

TDM680
High Performance Near Edge Wax Resin
This high performance near edge wax resin grade is the most flexible product designed to offer excellent all-round performance on near edge technology desktop, industrial and in-line coding printer systems. This grade offers maximum print performance on all types of coated or non-coated label materials along with all types of packaging films and medical paper. It has a proven track record as a drop-in replacement for the branded products supplied by OEMs such as Toshiba TEC, Avery, Markem, Videojet & ICE.
With ISEGA approval, this grade is the ideal choice for in-line coders or desktop printers used in food packaging applications. It prints at a low temperature and offers bold, black prints at print speeds of up to 24 inches per second as well as having a high resin content that allows for high levels of durability to the printed image. This grade is available in a very wide range of stock sizes for next day delivery.
Prints on most types of packaging films, and all coated papers and synthetic films
Excellent scratch and smudge resistance
Excellent print definition, even when printing at very high speed
Available Colours
Black
Data Sheets
Performance
Performance Properties
-
Ideal for in-line coders or desktop printers used in food packaging applications
-
Excellent print quality at very high speed (up to 24”/second)
-
Prints at a very low temperature and gives bold and black print
-
Drop-in product to competitors wax resin ribbons
-
Very low printhead energy requirements
-
ISEGA certification
-
Available from stock for all popular printers
-
Very competitively priced

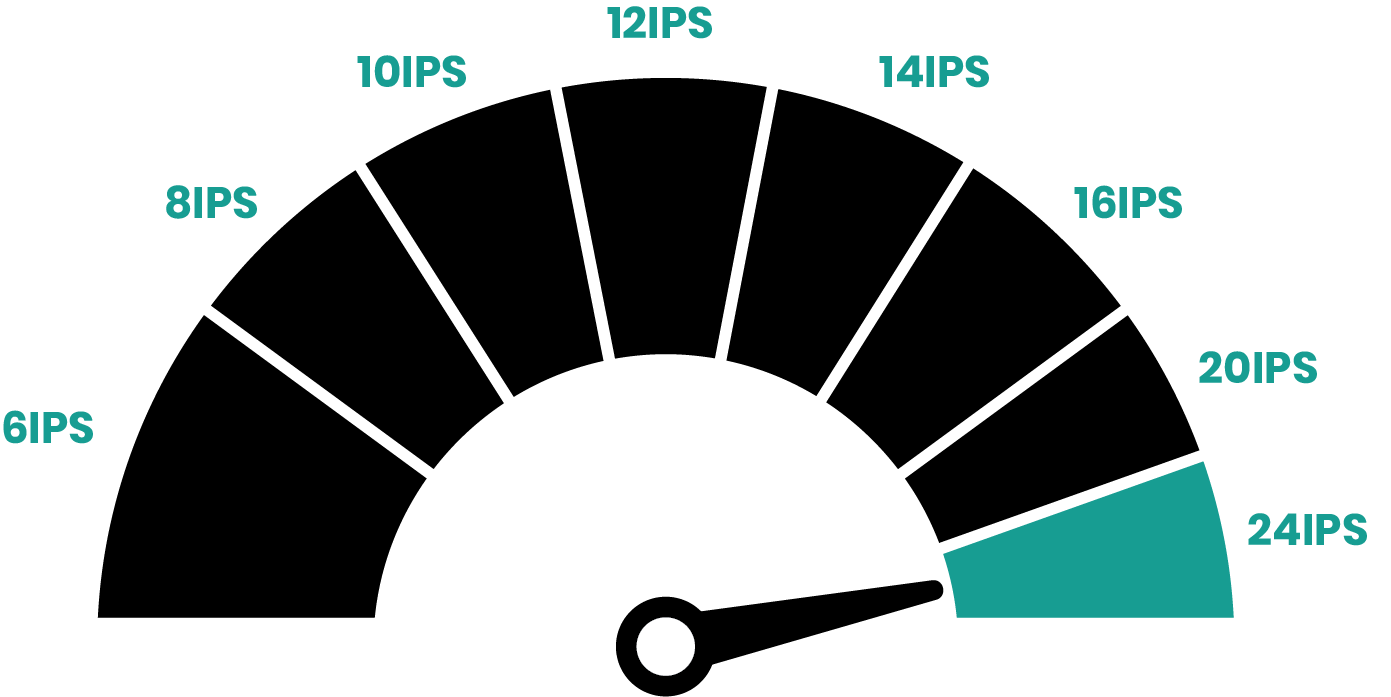

Print Speed
Heat Settings
Melting Point: 80 ± 3°C
Resistance Chart
- Print Sensitivity
- Heat Resistance
- Abrasion Resistance
- Solvent Resistance
- Label Adaptability
Recommended Substrates
| PET |
•••• |
| Coated PapersVellum, uncoated, matt coated, semi-gloss, tag board |
•••• |
| Synthetic Papers - |
•••• |
| BOPP |
•••• |
Specification
Ribbon Specifications
|
DESCRIPTION |
TECHNICAL |
|
BASE FILM CARRIER |
4.0 Micron Polyester |
|
TOTAL RIBBON THICKNESS |
6.0 Microns ± 1.0 Micron |
|
INK TYPE |
Wax Resin; Near Edge Technology |
|
COLOUR |
Black |
|
INK MELTING POINT |
80 ± 3 ºC |
|
DENSITY |
1.92 |
Ribbon Storage Conditions
|
DESCRIPTION |
TECHNICAL |
|
TEMPERATURE |
5°C - 35°C (41F - 95F) |
|
HUMIDITY |
30% to 85% relative humidity |
|
LIGHT |
Avoid direct sunlight |
Custom Branding
Design your own data sheets and box end label
Industry Applications
Warehouse & Logistics Labelling
Pharmaceutical

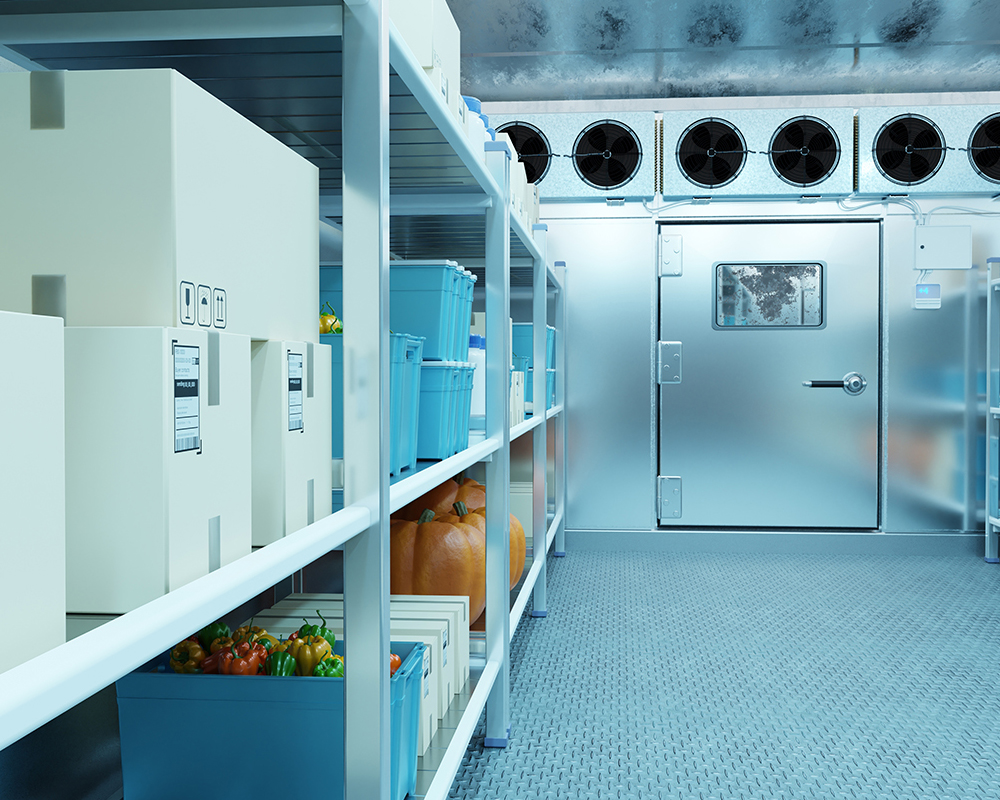

Freezer Labelling
Flexible Packaging
Retail
TDM680 Ribbons
| PART NUMBER | WIDTH (mm) | LENGTH (M) | WINDING | CORE TYPE | BOX QTY |
|---|---|---|---|---|---|
| TDM680-055450-IW | 55 | 450 | Inside | 25.5mm Card Core, 2 spare cores per box | 20 |
| TDM680-110450-IW | 110 | 450 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-130450-IW | 130 | 450 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-040600-IW | 40 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 20 |
| TDM680-055600-IW | 55 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 20 |
| TDM680-064600-IW | 64 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-080600-IW | 80 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-090600-IW | 90 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-095600-IW | 95 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-104600-IW | 104 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-110600-IW | 110 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-130600-IW | 130 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-160600-IW | 160 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-220600-IW | 220 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-055450P-IW | 55 | 450 | Inside | 25.6mm ID Plastic Core, 2 spare cores per box | 20 |
| TDM680-110450P-IW | 110 | 450 | Inside | 25.6mm ID Plastic Core, 2 spare cores per box | 10 |
| TDM680-030600P-IW | 30 | 600 | Inside | 25.6mm ID Plastic Core, 2 spare cores per box | 25 |
| TDM680-033600P-IW | 33 | 600 | Inside | 25.6mm ID Plastic Core, 2 spare cores per box | 25 |
| TDM680-035600P-IW | 35 | 600 | Inside | 25.6mm ID Plastic Core, 2 spare cores per box | 25 |
| TDM680-040600P-IW | 40 | 600 | Inside | 25.6mm ID Plastic Core, 2 spare cores per box | 25 |
| TDM680-055600P-IW | 55 | 600 | Inside | 25.6mm ID Plastic Core, 2 spare cores per box | 20 |
| TDM680-110600P-IW | 110 | 600 | Inside | 25.6mm ID Plastic Core, 2 spare cores per box | 10 |
| TDM680-130600P-IW | 130 | 600 | Inside | 25.6mm ID Plastic Core, 2 spare cores per box | 10 |
| TDM680-055830P-IW | 55 | 830 | Inside | Plastic | 20 |
| TDM680-076830P-IW | 80 | 830 | Inside | Plastic | 11 |
| TDM680-110830P-IW | 110 | 830 | Inside | Plastic | 8 |
| TDM680-035900P-IW | 35 | 900 | Inside | 25.6mm ID Plastic Core, 2 spare cores per box | 20 |
| TDM680-055900P-IW | 55 | 900 | Inside | 25.6mm ID Plastic Core, 2 spare cores per box | 20 |
| TDM680-115300T-OW | 115 | 300 | Outside | 25.5mm ID Card Core, 2 notches each end | 10 |
| TDM680-138300T-OW | 138 | 300 | Outside | 25.5mm ID Card Core, 2 notches each end | 10 |
| TDM680-160300T-OW | 160 | 300 | Outside | 25.5mm ID Card Core, 2 notches each end | 10 |
| TDM680-176300T-OW | 176 | 300 | Outside | 25.5mm ID Card Core, 2 notches each end | 10 |
| TDM680-220300T-OW | 220 | 300 | Outside | 25.5mm ID Card Core, 2 notches each end | 10 |
| TDM680-055600-OW | 55 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 20 |
| TDM680-056600-OW | 56 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-068600-OW | 68 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-076600-OW | 76 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-084600-OW | 84 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-089600-OW | 89 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-102600-OW | 102 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-110600-OW | 110 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-114600-OW | 114 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-130600-OW | 130 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-134600-OW | 134 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-160600-OW | 160 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM680-030600P-OW | 30 | 600 | Outside | 25.6mm ID Plastic Core, 2 spare cores per box | 20 |
| TDM680-033600P-OW | 33 | 600 | Outside | 25.6mm ID Plastic Core, 2 spare cores per box | 20 |
| TDM680-055600P-OW | 55 | 600 | Outside | 25.6mm ID Plastic Core, 2 spare cores per box | 20 |
| TDM680-080600P-OW | 80 | 600 | Outside | 25.6mm ID Plastic Core, 2 spare cores per box | 10 |
| TDM680-110600P-OW | 110 | 600 | Outside | 25.6mm ID Plastic Core, 2 spare cores per box | 10 |
| TDM680-0301000P-OW | 30 | 1.000 | Outside | 25.6mm ID Plastic Core, 2 spare cores per box | 18 |
| TDM680-0551000P-OW | 55 | 1.000 | Outside | 25.6mm ID Plastic Core, 2 spare cores per box | 12 |
Cannot find the size you need?
We can produce this in your preferred size
Our “custom-made” items are produced individually and on a per-order basis. The standard production time is usually 1 to 2 weeks.
As all items are produced on demand, the delivered quantity may differ slightly from the ordered quantity. Please allow for a quality tolerance of +/- 10% for an order of approximately 100 rolls.
