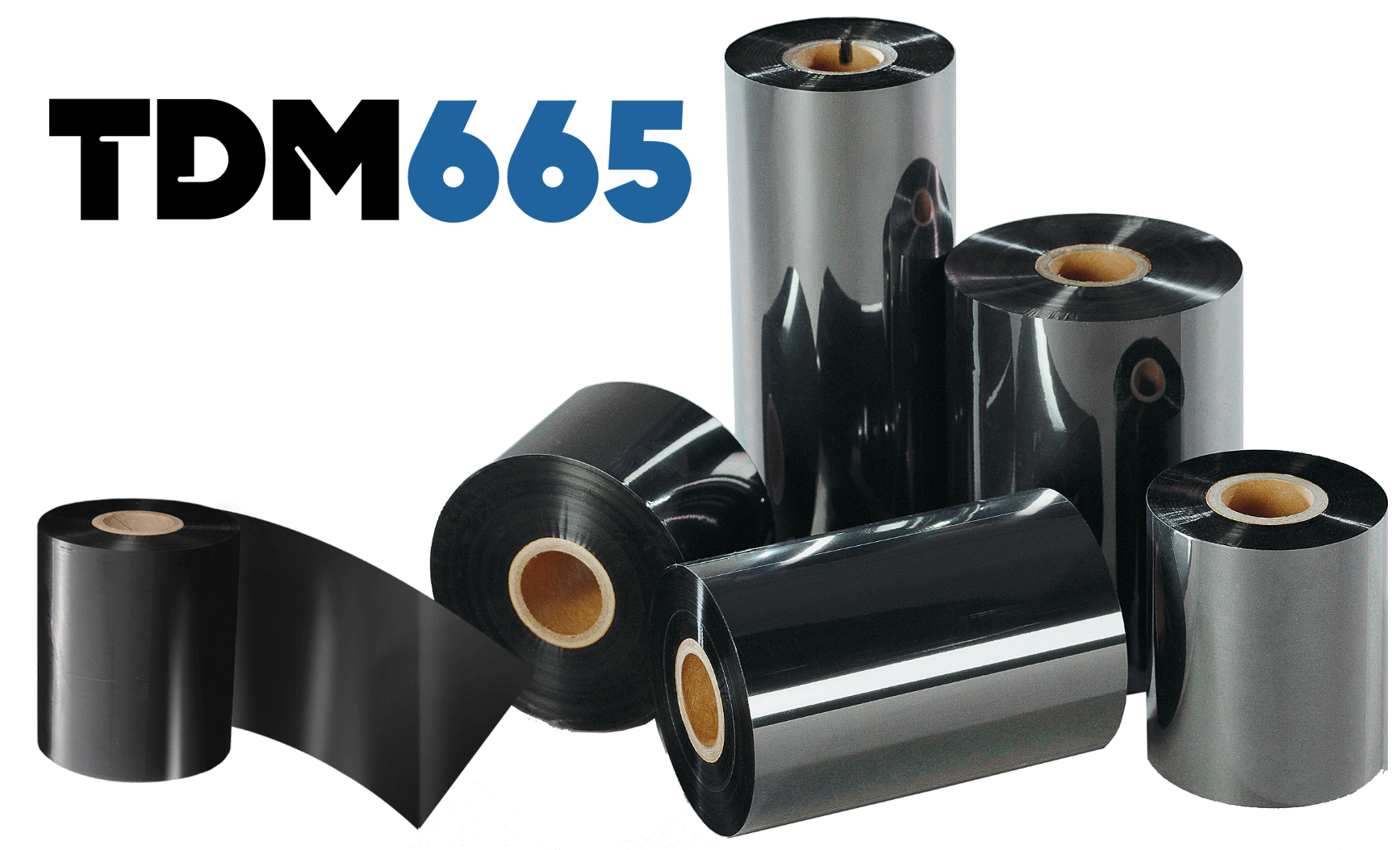

TDM665
Premium Near Edge Wax Resin
This premium wax resin grade is an all-round high performance wax resin that has a slightly lower content of resin. This allows for a better print performance on vellum, uncoated papers, coated and uncoated card tags, synthetic films, medical paper & Tyvek although there is a slight loss of durability when printed onto synthetics films.
It is ideally suited for tray end card applications using Toshiba near edge printers found within the fresh produce packing industry. It offers bold, black prints at speeds of up to 16 inches per second and has been proven as a drop-in replacement for the branded products supplied by OEMs such as Toshiba TEC, Avery, Markem, Videojet & ICE. ISEGA approval also makes this grade the ideal choice for printers used in food packaging applications.
Excellent scratch resistance
Prints at high speed, up to 14 Inches per second
Prints onto a wide range of substrates
Available Colours
Black
Data Sheets
Performance
Performance Properties
-
Ideal for a wide range of materials, even uncoated papers thanks to its slightly lower content of resin.
-
Excellent print quality at high speed (up to 14”/second)
-
Perfect for tray-end card applications printed using Toshiba TEC near edge printers, commonly used in the fresh produce packing industry
-
A drop-in replacement for branded products supplied by OEMS such as Toshiba TEC, Avery, Markem, Videojet & Ice
-
Very low printhead energy requirements
-
Available from stock for all popular printers
-
High performance backcoat for better printhead protection

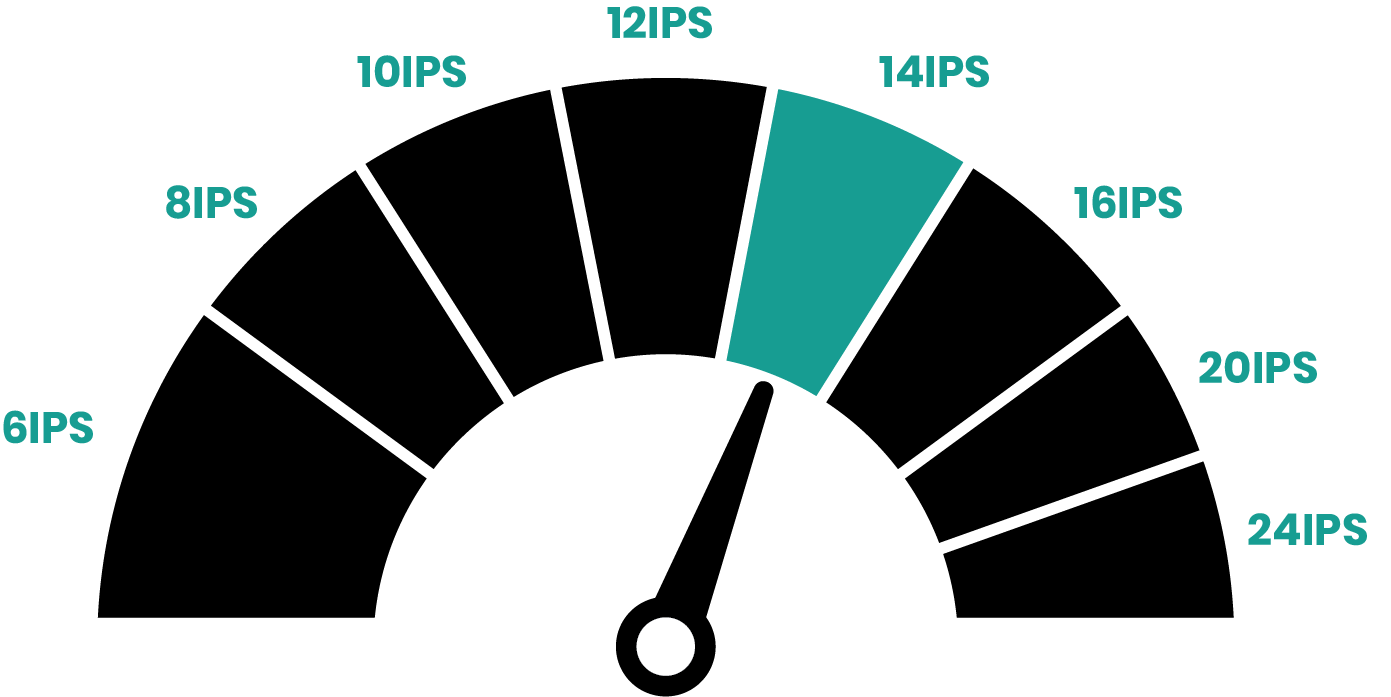

Print Speed
Heat Settings
Melting Point: 78 ± 3°C
Resistance Chart
- Print Sensitivity
- Heat Resistance
- Abrasion Resistance
- Solvent Resistance
- Label Adaptability
Recommended Substrates
| Film Label: PET/PE/BOPP |
•••• |
| Coated Paper: Matt coated, semi-gloss, high-gloss, tag board |
•••• |
|
Synthetic Paper: |
•••• |
Specification
Ribbon Specifications
|
DESCRIPTION |
TECHNICAL |
|
BASE FILM CARRIER |
4.5 Micron Polyester |
|
TOTAL RIBBON THICKNESS |
6.3 Microns ± 0.3 Micron |
|
INK TYPE |
Wax Resin; Near Edge Technology |
|
COLOUR |
Black |
|
INK MELTING POINT |
78 ± 3 ºC |
|
DENSITY |
2.1 |
Ribbon Storage Conditions
|
DESCRIPTION |
TECHNICAL |
|
TEMPERATURE |
5°C - 35°C (41F - 95F) |
|
HUMIDITY |
20% to 80% relative humidity |
|
LIGHT |
Avoid direct sunlight |
Custom Branding
Design your own datasheets and box end label
Industry Applications
Warehouse & Logistics Labelling
Pharmaceutical
Freezer Labelling
Flexible Packaging
Retail
TDM665 Ribbons
| PART NUMBER | WIDTH (mm) | LENGTH (M) | WINDING | CORE TYPE | BOX QTY |
|---|---|---|---|---|---|
| TDM665-033600P-IW | 33 | 600 | Inside | 25.6mm ID Plastic Core, 2 spare cores per box | 25 |
| TDM665-055600P-IW | 55 | 600 | Inside | 25.6mm ID Plastic Core, 2 spare cores per box | 20 |
| TDM665-110600P-IW | 110 | 600 | Inside | 25.6mm ID Plastic Core, 2 spare cores per box | 10 |
| TDM665-040600-IW | 40 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 20 |
| TDM665-055600-IW | 55 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 20 |
| TDM665-064600-IW | 64 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-080600-IW | 80 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-090600-IW | 90 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-095600-IW | 95 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-104600-IW | 104 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-110600-IW | 110 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-130600-IW | 130 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-160600-IW | 160 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-160600-IW | 220 | 600 | Inside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-160300-OW | 160 | 300 | Outside | 25.5mm ID Card Core, 2 notches each end | 10 |
| TDM665-220300-OW | 220 | 300 | Outside | 25.5mm ID Card Core, 2 notches each end | 10 |
| TDM665-033600P-OW | 33 | 600 | Outside | 25.6mm ID Plastic Core, 2 spare cores per box | 20 |
| TDM665-055600P-OW | 55 | 600 | Outside | 25.6mm ID Plastic Core, 2 spare cores per box | 20 |
| TDM665-110600P-OW | 110 | 600 | Outside | 25.6mm ID Plastic Core, 2 spare cores per box | 10 |
| TDM665-055600-OW | 55 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 20 |
| TDM665-056600-OW | 56 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-068600-OW | 68 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-076600-OW | 76 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-084600-OW | 84 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-089600-OW | 89 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-102600-OW | 102 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-110600-OW | 110 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-114600-OW | 114 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-130600-OW | 130 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-134600-OW | 134 | 600 | Outside | 25.5mm Card Core, 2 spare cores per box | 10 |
| TDM665-0551000P-OW | 55 | 1.000 | Outside | Plastic | 12 |
Cannot find the size you need?
We can produce this in your preferred size
Our “custom-made” items are produced individually and on a per-order basis. The standard production time is usually 1 to 2 weeks.
As all items are produced on demand, the delivered quantity may differ slightly from the ordered quantity. Please allow for a quality tolerance of +/- 10% for an order of approximately 100 rolls.
